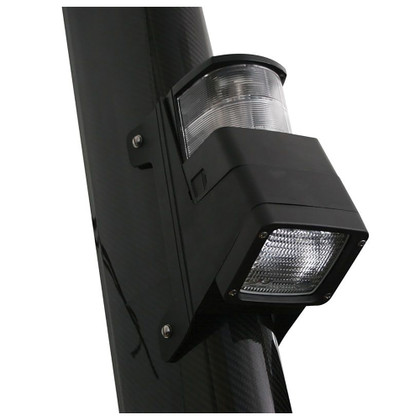

CAD DrawingCAD Drawing 2CAD Drawing 3Halogen 8504 Series Masthead/Floodlight Lamp - Black
Deck Floodlight and Masthead Lamp combined in one robust housing.
Suitable for vessels less than 20m in length.
Features:
- 3 Nautical Mile Masthead lamp
- Hella 'Free Form' reflector technology
- Flexible mounting arms for mounting on a variety of mast profiles
- Illuminates large areas of deck or superstructure
- Glass lens bonded with reflector to be dust and moisture resistant
- Covered bulbs for moisture protection
- All metal parts are stainless steel
Specifications:
- Housing Description: UV and impact resistant plastic housing
- Bulb: 12V / 10W BAY15d and 12V / 55W H3 bulbs included
- Mounting: Navigation lamp and Deck Floodlight require separate wiring Housing arms flex to fit around mast pro
- Degree of Protection: IP X4
- Maximum Output: Deck lamp 12V / 55W or 24V / 70W, Note - Not suitable for 100W bulbs
- Approvals: BSH, IMO COLREG, USCG, RINA, ABYC A-16, NMSC, Maritime NZ
Product : HELLA 3NM MASTHEAD HALOGEN FLOOD LAMP SQUARE
Manufacturer : Hella Marine
Manufacturer Part No : 998504001
UPC : 760687622123
Product : HELLA 3NM MASTHEAD HALOGEN FLOOD LAMP SQUARE
