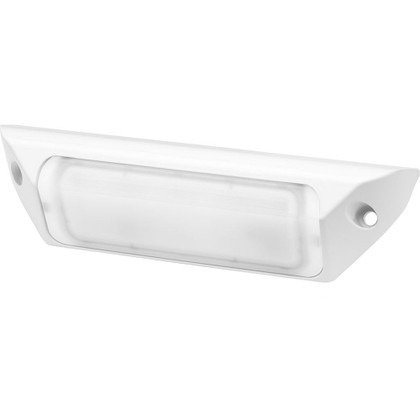

CAD DrawingCAD Drawing 2CAD Drawing 3LED Deck Light - White Housing - 2500 Lumens
Hella Marine introduces the low profile and powerful FMS LED deck lamps. These surface-mount scene lamps are purpose-designed to integrate discreetly in tight spaces and exterior recesses yet throw a huge amount of light wherever they are installed. With a protrusion of only 38 mm, the FMS-Lamps are sleek and unobtrusive during the day but make themselves very well-known at night!
Two light intensities are offered: the FMS1200 with 1200 lumens; and the FMS2500 with an even more powerful 2500 lumens. This light is the 2500 lumens option, but both lamps offer even close-range illumination directly underneath the lamp. The light is projected downwards at a fixed angle of 45 degrees, with no brackets to adjust.
Hella Marine LED technology is the answer for energy-efficient, completely sealed, shock and vibration-resistant lighting. Advanced electronics provide consistent illumination and circuit protection across a range of inputs from 9–32VDC for a long service life.
Features:
- Deck floodlight for surface mounting
- Low profile design
- Close-range illumination
- 2500 lumens
- Energy-efficient and durable LED technology
Specifications:
- Housing Material: Die-cast aluminum, CoroSafe coating
- Lens: Widespread diffuser
- Mounting: Surface mount
- Lumen: 2500 lumens
- Color Temperature: 6500K (White)
- Cable: Pre-wired with 500mm cable
- Operating Voltage: Multivolt™ 9-32V DC, Nominal 12/24V DC
- Power Consumption: 28W
- Degree of Protection: IP 6K8 (Protection against dust and prolonged water immersion)
- IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)
- Weight: 600g (including cable)
- Approvals: ECE-R10, RCM, ADR/ GGVSEB
Manufacturer : Hella Marine
Manufacturer Part No : 996098511
UPC : 9002920164184
