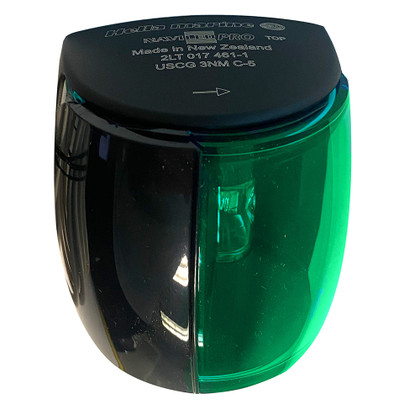

CAD DrawingCAD Drawing 2CAD Drawing 3NaviLED PRO Starboard Navigation Lamp - Black - 3NM
This starboard power-saving LED navigation lamp is ultra-durable for enhanced safety. NaviLEDPRO lamps are proven worldwide on commercial, military, and recreational vessels.
*Designed for the starboard side of a vessel.
Ultra-Low Current Draw
This lamp consumes less than 3.2 watts combined.
No Bulbs, No Maintenance, and an Ultra-Long Service Life
Hella marine LED technology has no filaments to break, making NaviLEDPRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.
MultivoltTM 9-33V DC
Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.
Fully Sealed for Life. IP67-Certified
This NaviLEDPRO lamp is a completely sealed unit. High-impact housing ensures durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid lenses to offer superior strength in extreme conditions.
Pre-wired with 2.5m of Twin-Core Marine Cable
High-quality cable assemblies for time-saving, completely sealed installations.
Specifications:
- Dimensions (W x H): 3.43 x 3.54 inches (87mm x 90mm)
- Lamp Color: Black
- Material Description: Hi-impact-resistant acrylic lens
- Minimum Visible Distance: 3 nautical miles (powerboats only)
- Cable: Pre-wired with 2.5m of twin core marine cable
- Operating Voltage: Multivolt 9-33V DC
- Voltage Protection: Spike is protected to +500 volts. Reverse polarity is protected to -700 volts
- Power Consumption: Less than 3.2W
- Degree of Protection: IP67 (completely sealed)
- Weight: 250g (including cable)
- Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
Manufacturer : Hella Marine
Manufacturer Part No : 017461101
UPC : 9416325253341
