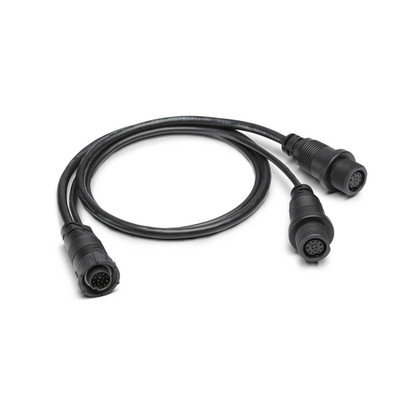

CAD DrawingCAD Drawing 2CAD Drawing 3Humminbird 14 M SILR Y - Side Imaging & 2D Splitter Cable
Model: 720112-1- Compatible with: All SOLIX models
- Combines two Side Imaging transducers together, acting as independent port and starboard Side Imaging sonar sources and can then be connected to a single Humminbird control head.
- Includes transducer ID for Airmar® accessory transducers when used in combination with 14 M ID SIDB Y (#720111-1)
- Cable length: 30"" (76 cm)
The 14 M ID SILR Y cable allows for two Side Imaging transducers to be connected to into a single sonar input on a Humminbird chartplotter. This y-cable utilizes the two Side Imaging transducer to act as independent port and starboard Side Imaging sonar sources when boat hulls and transducer obstructions require separate transducers for a clear picture on each side of the vessel. This rigging cable provides the ability to install a separate high-speed Humminbird 2D transducer for high-speed depth reading and sonar performance. Alternatively, this cable can also be used to add an accessory Airmar® 2D transducer to a Humminbird control head that also has a Side or Down Imaging transducer connected at the same time. This cable supports Transducer ID for automatic recognition and easy setup of Airmar® accessory transducers.
