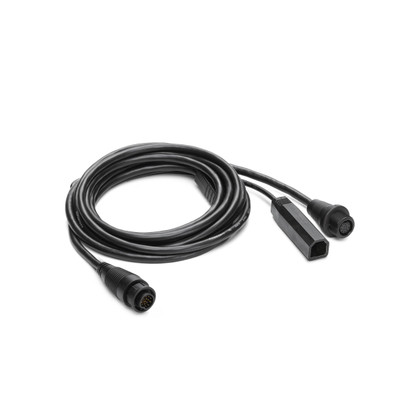

CAD DrawingCAD Drawing 2CAD Drawing 3Humminbird 9-M360-2DDI-Y
Y-Cable For M360 With Helix HW Transducers
Model: 720107-1- Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
- For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
- This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.
- Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
- 30"" (76 cm) cable on Dual Sprectrum CHIRP side of cable
- 10' (3 m) cable on the MEGA 360 side
- 1-Year Limited Warranty
This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.
Specifications| Current Models | HELIX 10, HELIX 12, HELIX 8, HELIX 9 |
| Length | Less than 20' |
| Type | Transducer Adapter Cables |
