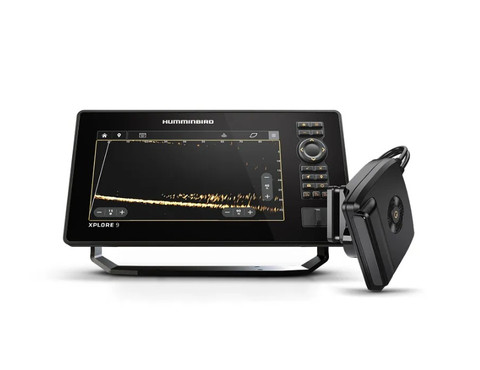

CAD DrawingCAD Drawing 2CAD Drawing 3Humminbird ICE X9 CHO Mega Live2 Bundle
Model: 412340-1- Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
- Designed for Ice: Includes ice-specific cable lengths, inline fuses and connectors for hassle-free setup and reliability in cold conditions.
- Ice Mode: Streamlined features and functionality, for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
- Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
- Lakemaster Mapping Included: Ice XPLORE fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
- Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
- Warranty: Ice XPLORE includes a 2-year limited warranty (Additional third year of warranty is available with product registration). MEGA Live 2 is covered by a 2-year warranty.
- 2D Flasher Modes: XPLORE units now support advanced 2D flasher modes for enhanced vertical jigging and ice fishing visibility. (Requires XI 14 transducer).
- Included Components: XPLORE fish finder; 18" Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse.
Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.
Easy to Use: ICE XPLORE's intuitive and streamlined interface provides quick access to the key functions you need on the ice.
Unmatched Clarity: MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail.
LakeMaster VX Maps Included: Navigate over 13,000 lakes with 1-foot contours and depth and shallow water highlights, all included with ICE XPLORE.
Designed For Ice Anglers: ICE XPLORE comes preset in Ice Mode, optimizing your experience for hardwater use. This includes a consolidated home screen, ice-themed waypoints, battery runtime monitoring, and flasher and 2D sonar views.
Specifications| Display Size - Diagonal | 10.1 in |
| Length | 6.26 in - 15.9 cm |
| Height | 11.69 in - 29.69 cm |
| Width | 3.3 in - 8.38 cm |
| Weight | 4 lb 4.48 oz - 1.94138 kg |
| Display Pixel Matrix | 1280 x 720 |
| Transducer Included | MEGA Live Imaging |
| Compatible With | Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2 |
| Features | Touch Screen, MEGA Live Imaging, Networking, Built In GPS, All Season, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | MEGA Side Imaging+, MEGA Down Imaging, MEGA Side Imaging, MEGA Down Imaging+ |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Live Sonar-Coverage | 20 degrees x 120 degrees |
| Interface | Touch Screen, Keypad Control |
| Power Draw | 2.2 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Warranty | Three-Year Warranty with Registration, One-Year Warranty |
