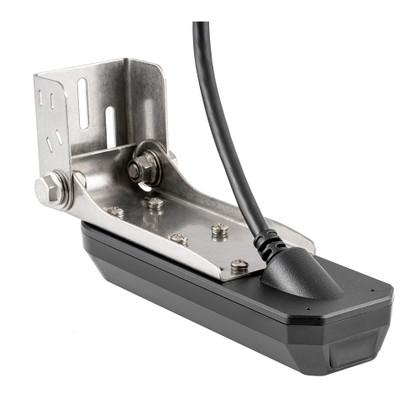

CAD DrawingCAD Drawing 2CAD Drawing 3XM-14-HW-CMSI-T Compact MEGA Side Imaging+ Transducer
Humminbird Compact MEGA Side Imaging+ transducer is compatible with APEX, XPLORE, and SOLIX G3 models. This transom mount transducer has a built-in temperature sensor, MEGA Side Imaging+, 455kHz and 1.1 MHz; Down Imaging+ frequencies 455kHz and 1.1 MHz, and Dual Spectrum 2D CHIRP with a range of 150- 220kHz.
Features:
- Compatible with APEX, SOLIX G3, and XPLORE fish finder models
- Cable Length: 20 Feet
- Compact MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 405-505 kHz - 800ft (244m), MEGA: 1.100-1.200 MHz - 400ft (122m)
- Compact MEGA Down Imaging Frequencies - Max Depth: 455 kHz: 420-520 kHz - 400ft (122m) MEGA: 1.125-1.225 MHz - 400ft (122m)
- Dual Spectrum CHIRP Frequencies - Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Screw-On Connector
- Built-in temperature sensor
- 1-Year Limited Warranty
Specifications:
- Mount Type: Transom
- Sonar Type: MEGA Imaging +, Down Imaging, Dual Spectrum, Side Imaging
- Warranty: 1-Year Warranty
Manufacturer : Humminbird
Manufacturer Part No : 710311-1
