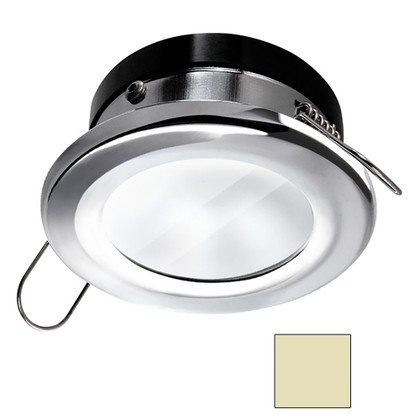

CAD DrawingCAD Drawing 2CAD Drawing 3Apeiron A1110Z 4.5W Spring Mount Light - Round - Warm White - Polished Chrome Finish
Since its introduction nearly a decade ago, Apeiron has been the undisputed go-to marine LED downlight. Apeiron fixtures offer the perfect blend of technical sophistication and elegance. Now with a swivel option.
Features:
- Advanced Optics - Even light, with no LED "dots" or pixelation, provides the halogen look without the heat and 1/5th the power load.
- Dimmable - Using i2Systems LightLink™ dimmers, experience simple LED dimming at the push of a button.
- Rugged & Waterproof - With a stainless steel construction and a round bezel, expect an industry-leading fit and finish that will last (IP67 waterproof rated).
- Simple to Install - The convenient spring clip design makes installation fast and easy.
Applications:
- General Lighting
- Soffit
- Pilot House
- Mezzanine
- Hardtop
Specifications:
- Light Color: Warm white
- Finish Color: Polished chrome finish
- Bezel Shape: Round
- Input Voltage: 9-30V DC
- Input Power: 4.5 Watts
- Lumens: 106 LMS typ. @ 3000°K
- Efficiency: 31 LMS / W typ. @ 3000°K
- Beam Angle: 120° fixed, 60° swivel
- Operating Temp: -20°C to 40°C
- Max. Case Temp: 50°C
- IP Rating: IP67
- Wiring: 18" Twisted 18 AWG
- Housing: Stainless steel trim, anodized aluminum housing
- Lens: Tempered glass with diffuser
Manufacturer : I2Systems Inc
Manufacturer Part No : AP-4W-30K-PW11
