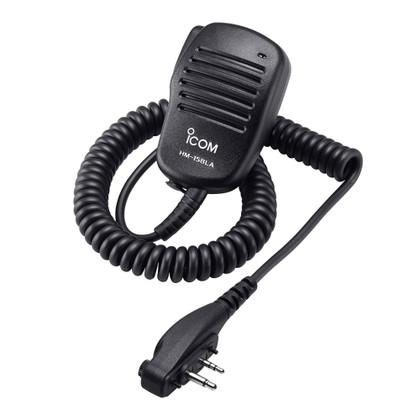

CAD DrawingCAD Drawing 2CAD Drawing 3HM158LA Compact Speaker Mic
This Icom speaker microphone is for Icom portable radios that accept a 2-pin LA-type screw cap connector. See below for the entire list of Icom-compatible radios.
Features:
- 8-position rotary clip
- Equipped with earphone jack
- 2-pin LA-type screw cap connector
Specifications:
- Connector Information: 2-pin Screw attached type; Φ3.5 mm earphone jack
- Waterproof: N/A
- Cable Length (when curled): 19.3 in. (490 mm)
- Weight: 125 g
Compatible Products:
- IC-V86/IC-U86
- IC-V80
- IC-T10
- IC-F3230D/IC-F4230D
- IC-F1100D/IC-F2100D
- IC-F1000/IC-F2000
- IC-F3001/IC-F4001
- IC-F3003 /IC-F4003
- IC-V10MR
- IC-V3MR
- IC-F3031/IC-F4031
- IC-F3032/IC-F4032
- IC-F3033/IC-F4033
- IC-F3011/IC-F4011
- IC-F3013/IC-F4013
- IC-F3002/IC-F4002
- IC-V88/IC-U88
- IC-G88
- IC-G86
- IC-F29SDR
- IC-F29DR2
- IC-F29DR
- IC-F29SR2
- IC-F29SR
- IC-41PRO
- IC-F27SR
Manufacturer : Icom
Manufacturer Part No : HM158LA
UPC : 731797012289
