Icom HM195 CommandMic IV with White BlackLit LCD - Black

Icom HM195 CommandMic IV with White BlackLit LCD - Black

No reviews yet Write a Review
$191.66
SKU:
CW106006
UPC:
731797039538
Weight:
2.20 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

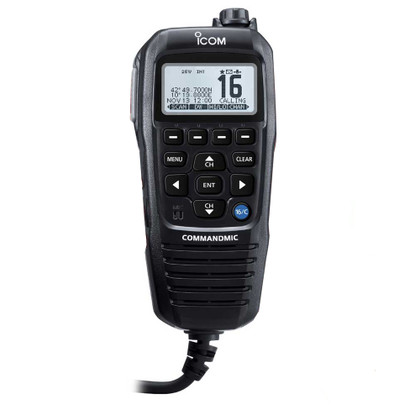

HM195 CommandMic™ IV with White BlackLit LCD - Black

CommandMic™ Complete Remote-Control Option

The menu system provides easy and intuitive operation. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons. The directional keypad allows you to perform various operations and settings. Compatible with a wide range of radios, including the M400BB, M410BB, M424G, M510BB, M510 Series, and M510 Evo Series, the CommandMic ™ ensures seamless integration and enhanced functionality.

Features:

  • IPX7 Submersible rating
  • Superior audio performance
  • Total control of all communications & Class D DSC functions
  • AquaQuake™
  • The CommandMic ™ (HM-195) remote-control microphone size (W × H × D): 67.5 × 144.5 × 37 mm; 2.66 × 5.69 × 1.46 in.
  • Weight (approx.; except cables): 400g; 14.1 oz.
  • Full remote control capability for Icom marine transceivers
  • New Intuitive User Interface
  • Submersible (1m depth for 30 min.)
  • Intercom function with IC-M506/EURO, M424/G, M423/G, M400BB, M410BB, M510BB, M510 Series, and M510 Evo
  • Up to 18.3m (60.3ft) remote location installation*
  • * Two optional OPC-1541 extension cables are required.
  • DSC “Distress” button on the back of the unit

Specifications:

  • Operating Temperature Range: -20 degrees C - +60 degrees C
  • Audio Power Output: 2.0 W typ. @ 10% distortion with 4 Ω
  • Waterproof: IPX7
  • Cable Length: 560 mm;  22.0 in  (when curled)

Supplied Accessories:

  • 6.1M (20ft) of cable
  • Mounting base for cable connector
  • Microphone hanger
  • Controller separation cable
  • ACC cables
  • Coaxial cable with PL-259 plugs

Manufacturer : Icom
Manufacturer Part No : HM195GB 61 EXP
UPC : 731797039538
