Maxi Puppy self-priming pump 12VDC. Ports ½” BSP threaded (use ¾” hose adapters), plus connections for 25mm (1”) bore hose.
Features:
- Connections: - for 25mm (1”) bore hose or 1/2" BSP
- Dimensions: - 220mm long, 120mm wide, 85mm high
- Fuse Size: - 25(amp)
- Output: - up to 45 litres/minute (10 gallons/minute).
- High capacity, continuously rated bilge pump
- Self priming up to 2.4m vertical lift
- Simple, fully serviceable design with few wearing parts
- Can generate pressures up to 1 bar (15 psi)
- Bronze body, stainless steel shaft
- Packaged Dimensions: L:28.00 x H:13.00 x W:15.00cm
- Actual Weight: 3.85 Kg (Approx. 4.35 Kg packed)
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

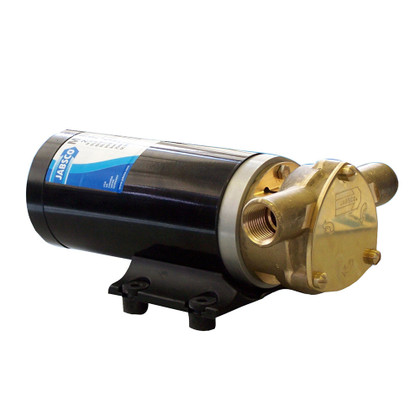

Product : JABSCO MAXI PUPPY 3000 12V FLEXIBLE IMPELLER PUMP
Manufacturer : Jabsco
Manufacturer Part No : 23610-3003
