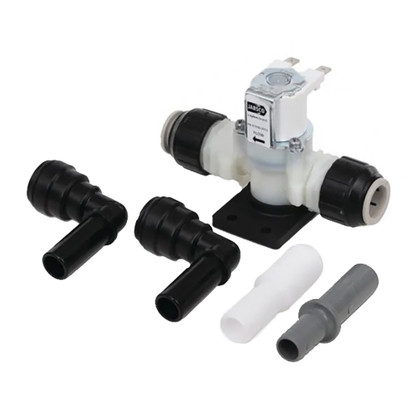

CAD DrawingCAD Drawing 2CAD Drawing 3Solenoid/Anti-Syphon Valve - 24V
Solenoid valve for use with Quiet Flush fresh water toilets. Inline, normally closed solenoid valve.
Features:
- Supplied with 1/2" (15mm) JG Speed fit connections, 1/2" (15mm) hose barb inlet, 3/4" (19mm) Hose barb outlet
- Double-check valve to protect against contamination of potable water
- Internal inlet filter
- Mountable in any orientation, above or below the toilet. Mounting bracket included
- Compatible with the Jabsco toilet series 37045, 37055, 37075, 58XX0
Specifications:
- Voltage: 24V DC
Manufacturer : Jabsco
Manufacturer Part No : 37038-2024
UPC : 671880637503
