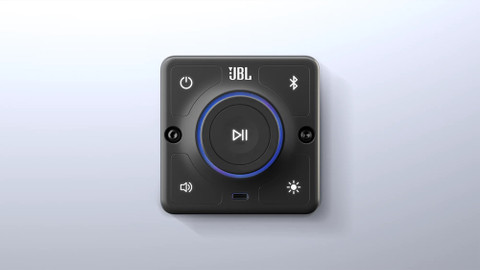

CAD DrawingCAD Drawing 2CAD Drawing 3JBL AURA-BT-M Compact High Performance Bluetooth Marine Stereo
Model: AURA-BT-M- 4 speaker performance audio
- Bluetooth 5.3 w/ 2-way control
- Intuitive illumination and backlit button controls
- Compact and shallow depth mounting enclosure
- Front IPX6 rating, designed to withstand the elements
- DC 12v Powered
Elevate your BT audio streaming experience with the JBL AURA-BT-M compact high performance Bluetooth Marine Stereo! AURA-BT-M supports up to 2 pair of JBL speakers, allowing for front and rear zone control, and is designed to withstand the elements. With Bluetooth 2-way control, it is easy to control the party from your personal BT device or from the AURA-BT-M marine stereo. Versatile in its compact size and small mounting enclosure, the AURA-BT-M has a front IPX6 rating to allow for mounting in all types of product vehicle segments, locations, and environments. Light up the day or night with the AURA-BT-M illumination features, selectable with 2 different light modes, or the ability to turn off the lighting feature.
Specifications| Power supply | 10-14VDC, 10A |
| Total speaker power output (Max. @THD 10%) | 72W |
| Media Center power output (Max. @THD 10%) | 4x18W |
| Wireless Bluetooth version | 5.3 |
| USB type C power output | 10W |
| BT stereo dimensions (W x H x D) | 3 5/8in x 3 5/8in x 2 7/8in overall |
| Mounting rough opening (W x H x D) | 2 5/8in x 2 5/8in x 1 1/2in |
What's in the Box:
- JBL AURA-BT-M Marine Stereo
- Wire Harness w/ Waterproof Connector
- Corrosion Resist Mounting Screws (x2)
- Owners Manual
- Quick Start Guide
