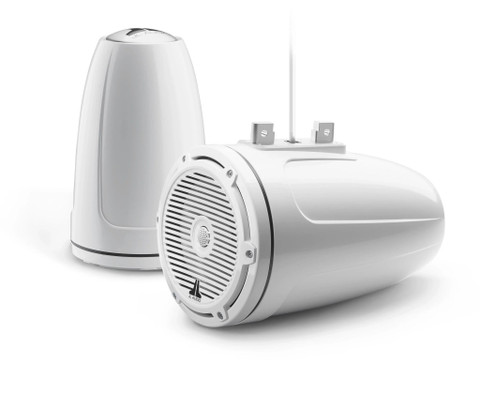

CAD DrawingCAD Drawing 2CAD Drawing 3JL Audio M3 7.7in Enclosed Tower Speakers White Classic Grille
Model: M3-770ETXv3-Gw-C-GwM3 7.7-inch Marine Enclosed Coaxial Speaker System (70 W, 4 ohms) - Gloss White Enclosure, Gloss White Classic Grille
Enclosed in these beautiful, injection-molded enclosures are our high-performance, M3 7.7-inch coaxial tower speakers. Specifically tuned for tower enclosure applications, these coaxial drivers deliver clean, loud audio that can be heard well beyond the boat when mounted up high.
The enclosures feature a decorative, aluminum logo cap on the end opposite the speaker, which can be oriented to match any custom mounting application. Each is designed to mate with one of our clamp systems (sold separately, and available to fit a wide range of pipe diameters). The wire exits through the center of the mount, staying high and dry, and out of sight. Professional installation is strongly recommended.
For best results, we recommend powering these systems with an amplifier in the 25-140 W per channel range.
Like all JL Audio marine speakers, this system is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Sold as a pair.
Mounting Clamps Required (Sold Separately)
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| General Specifications | |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| Continuous Power Handling (RMS) | 70 W |
| Recommended Amplifier Power (RMS) | 20 - 140 W / Ch. |
| Physical Specifications | |
| Enclosure Diameter | 7.70 in / 196 mm |
| Enclosure Depth | 12.52 in / 318 mm |
| Height including Mounting Clamp Receiver | 8.56 in / 217 mm |
| Mounting Clamp Receiver / Enclosure Offset | 0.86 in / 22 mm |
