CAD DrawingCAD Drawing 2CAD Drawing 3JL Audio M6 7.7in Enclosed Tower Speakers Titanium Sport Grille
M6-770ETXv3-Sb-S-GmTi 93656

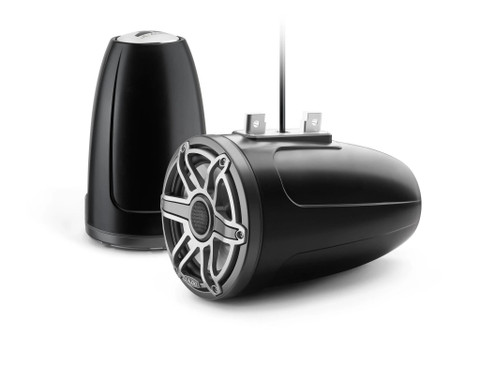

Model: M6-770ETXv3-Sb-S-GmTiM6 7.7-inch Marine Enclosed Coaxial Speaker System (100 W, 4 ohms) - Satin Black Enclosure, Gray Metallic Trim Ring, Titanium Sport Grille
Enclosed in these beautiful, injection-molded enclosures are our maximum-performance, M6 7.7-inch coaxial tower speakers, to deliver clean, loud audio that can be heard well beyond the boat when mounted up high.
The enclosures feature a decorative, aluminum logo cap on the end opposite the speaker, which can be oriented to match any custom mounting application. Each is designed to mate with one of our mounting fixtures (sold separately, and available to fit a wide range of applications). The speaker cables exit through the center of the fixtures, staying high and dry, and out of sight. Professional installation is strongly recommended.
For best results, we recommend powering these systems with an amplifier in the 40-200 W per channel range.
Like all JL Audio marine speakers, this system is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold as a pair.
Mounting Clamps Required (Sold Separately)
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| General Specifications | |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 - 200 W / Ch. |
| Physical Specifications | |
| Enclosure Diameter | 7.70 in / 196 mm |
| Enclosure Depth | 12.67 in / 322 mm |
| Height including Mounting Clamp Receiver* | 8.74 in / 222 mm |
| Mounting Clamp Receiver / Enclosure Offset | 1.04 in / 26 mm |
| *Mounting Clamps Required (Sold Separately) | |
