CAD DrawingCAD Drawing 2CAD Drawing 3JL Audio M6 8.8in Enclosed JL Audio M6 8.8in Enclosed Grill
M6-880ETXv3-Gw-S-GwGw 93664

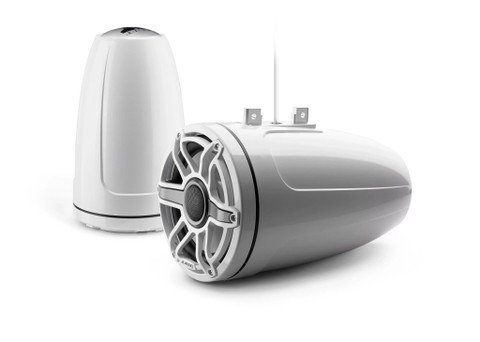

Model: M6-880ETXv3-Gw-S-GwGwM6 8.8-inch Marine Enclosed Coaxial Speaker System (125 W, 4 ohms) - Gloss White Enclosure, Gloss White Trim Ring, Gloss White Sport Grille
Enclosed in these beautiful, injection-molded enclosures are our maximum-performance, oversized M6 8.8-inch coaxial tower speakers, delivering clean, loud audio that can be heard well beyond the boat when mounted up high.
The huge woofer cone area advantage offers greater efficiency and bass output, which is complemented by the clear, smooth sound of an oversized 1.25-inch silk dome tweeter. These enclosures feature a decorative, aluminum logo cap on the end opposite the speaker, which can be oriented to match any custom mounting application. Each is designed to mate with one of our mounting fixtures (sold separately, and available to fit a wide range of applications). The speaker cables exit through the center of the fixtures, staying high and dry, and out of sight. Professional installation is strongly recommended.
For best results, we recommend powering these systems with an amplifier in the 50-250 W per channel range.
Like all JL Audio marine speakers, this system is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold as a pair.
Mounting Clamps Required (Sold Separately)
USA Limited Warranty: Two (2) years from the original date of purchase
Specifications| General Specifications | |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 38 Hz - 20 KHz ± 3 dB |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| Continuous Power Handling (RMS) | 125 W |
| Recommended Amplifier Power (RMS) | 50 - 250 W / Ch. |
| Physical Specifications | |
| Enclosure Diameter | 8.80 in / 224 mm |
| Enclosure Depth | 14.80 in / 376 mm |
| Height including Mounting Clamp Receiver* | 9.67 in / 246 mm |
| Mounting Clamp Receiver / Enclosure Offset | 0.87 in / 22 mm |
| *Mounting Clamps Required (Sold Separately) | |
