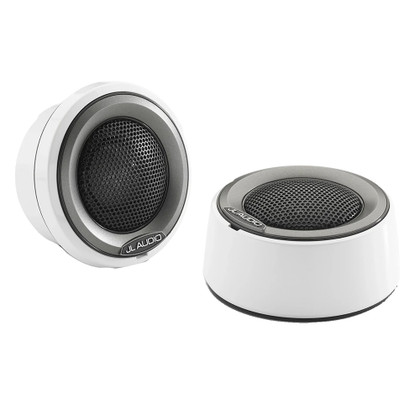

CAD DrawingCAD Drawing 2CAD Drawing 3M6 Series 1" Marine Component Tweeters - M6-100CT-C/S-GwGm
The standalone, M6 component tweeters are built with a 1-inch (25 mm) silk dome diaphragm to deliver high output, wide dispersion, and sparkling high-frequency detail. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures. You can also choose between the included “Classic” and “Sport” badge trim rings to complete your look.
The component tweeters come with outboard, 3rd order, and high-pass filters optimized for superior output and high-frequency detail. An automatic, solid-state circuit is also onboard to monitor current and minimize the possibility of tweeter failure. Like all M6 models, the component tweeters are built to withstand real-world saltwater conditions with an unsurpassed level of fidelity.
Sonic character: Powerful and Smooth
*Sold as a pair
Specifications:
- Continuous Power Handling (RMS): 75w
- Recommended Amplifier Power (RMS): 10-75w/ch
- System Efficiency: 91.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 ohm
- System Frequency Response: 4.8 Hz - 25 KHz ± 3 dB
Manufacturer : JL Audio
Manufacturer Part No : 010-03500-00
