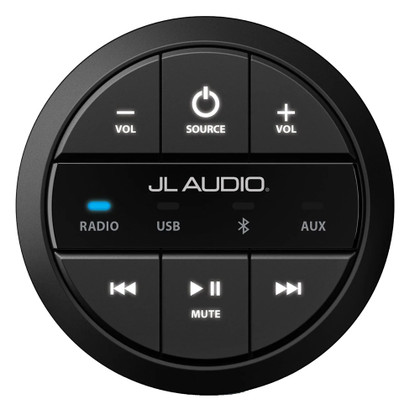

CAD DrawingCAD Drawing 2CAD Drawing 3MMR-20-BE Round Wired Remote for MediaMaster®
The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.
Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy to use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.
A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
- Power On/Off
- Source Select
- Volume Up/Down
- Track Up/Down (USB & BT)
- Track Fast-Forward/Fast-Rewind (USB)
- Favorite Up/Down (Radio)
- Play/Pause (USB & BT)
- Mute/Unmute (Radio & Aux)
The MMR-20-BE is compatible with these MediaMaster® source units:
- MM105
- MM100s-BE
- MM100s
- MM50
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
Manufacturer : JL Audio
Manufacturer Part No : 010-03131-00
