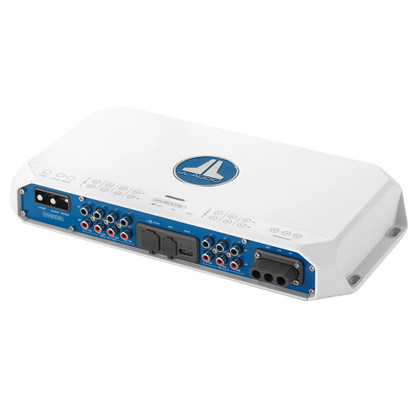

CAD DrawingCAD Drawing 2CAD Drawing 3MVI Series 600w 6 Channel Amplifier with Integrated DSP - MV600/6i
Reference-Grade Power with Digital Signal Processing (DSP) Technology
Featuring state-of-the-art amplifier circuits and built-in tuning capabilities, MVi amplifiers usher in a higher level of marine audio performance with unmatched fidelity and versatility.
- Comprehensive onboard tuning for exceptional sound quiality
- Advanced output design for pristine power and efficiency
- Easy setup at your fingertips with free TüN software
- Unique design adjusts operation to avoid thermal events
- Exceeds international standards for salt, fog and UV exposure
- 3-Year Warranty
Onboard Tuning Power
Each MVi marine amplifier is packed with a complete package of DSP functions, including equalizer, delay, crossover signal routing, mixing and more.
NEXD2™ Technology-Equipped
Innovative, high-speed switching design synchronizes an amplifier’s power supply and output channels, resulting in top-flight fidelity with ultralow noise and distortion.
No Knobs and Switches
TüN® is free software from JL Audio that is used to make all setup and audio adjustments. It’s available for download in a variety of applications for computers and most handheld devices.
Differential-Balanced Inputs
A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.
Advanced Rollback Protection
Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.
JLID™ Protocol Command
This proprietary JL Audio protocol provides easy control and communication of all settings for MVi amplifiers and optional JLid accessories.
General
- Warranty: 3 Years
- Channels: 6
- Height: 2.05"
- Width: 13.96"
- Depth: 6.93"
- Weight: 5 lbs
- Operating Voltage: 11-15 vdc
Audio
- Amplifier Class: D
- RMS @ 4 OHM: 75 W x 6/200 W x 3 (Bridged)
- RMS @ 2 OHM: 100 W x 6
- Fuse Rating: 50A
- Recommended Fuse Types: AFS, AGU or MaxiFuse™
- Min. Copper Power/Ground Wire Gauge: 4 awg
