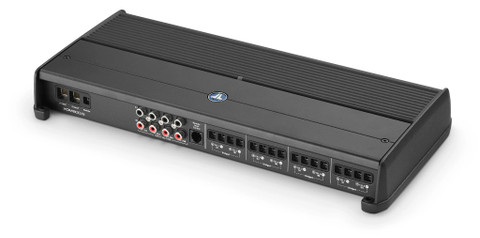

Jl Audio Xdm Marine Amplifier 8-channel 800 Watt 12v

Jl Audio Xdm Marine Amplifier 8-channel 800 Watt 12v

No reviews yet Write a Review
$1,049.99
SKU:
WTJLA0100311900
UPC:
699440986861
Weight:
8.97 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

JL Audio 8 Ch. Class D Full-Range Car/Marine Amplifier, 800 W

Model: XDM800/8
  • Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
  • Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4?
  • Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4?, plus two 4? subwoofers with 200 W each
  • Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4?, plus four 4? speakers with 75 W each
  • Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4? + rear speakers with 75 W x 2
  • Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4?, plus two 4? subwoofers with 200W each

The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the driver's seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications
Rated Continuous (RMS) Power @ 14.4 V
@ 4 ?75 W RMS x 8
@ 2 ?100 W RMS x 8
Bridged @ 4?200 W RMS x 4
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ?60 W RMS x 8
@ 2 ?90 W RMS x 8
Bridged @ 4?180 W RMS x 4
General Specifications
Frequency Response12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ?>150 / 50 Hz
Damping Factor @ 2 ?>75 / 50 Hz
THD+N @ Rated Power<1% @ 2 ? per Ch.
Input Voltage Range @ RCA Inputs200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge4 AWG wire
Fuse Rating80 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s)Low-Pass or High-Pass
Filter Slope(s)12 dB/octave
Filter Frequency Range50 Hz - 500 Hz
Detented, Calibrated Filter Freq. PotentiometersYes
Filter Defeat FunctionYes
Remote Level ControlOptional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes2 or 4 or All Channels
Channel Input Mode SwitchYes (2/4/6/8 ch.)
Pass-Through Preamp OutputNone
Source Channel Selection for PreOutsN/A
