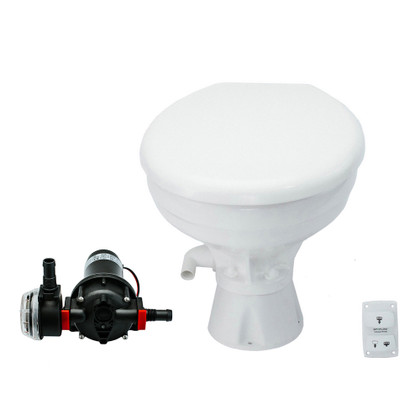

CAD DrawingCAD Drawing 2CAD Drawing 3AquaT Toilet Silent Electric Comfort - 12V with Pump
The AquaT Silent Electric Marine Toilet combines competitive pricing, a fine finish, and thoughtful design in a quiet, robust, and easy-to-clean marine head.
Features:
- Equipped with proven Aqua Jet diaphragm pump
- The toilet is quiet, hygienic, and reliable
- Made with corrosion-resistant components throughout
- The water inlet and outlet take place in two distinct steps
- Low water consumption (2 - 2.5 liter/flush)
- Two-way switch
- May be installed above or below the waterline
- Versatile plumbing connection options
- Automatic back-flow prevention
- Long service life
- Complies with ISO 8846, ignition protection, and EN 55014 EMC
Specifications:
- Height: standard marine
- Bowl Style: Household
- Materials: vitreous porcelain bowl for ease of cleaning, robust wooden seat, and cover with baked enamel finish
- Water Supply: raw sea or lake water, Aqua Jet diaphragm pump
- Inlet Hose: 0.75" ID
- Discharge Hose: 1.50" ID
Manufacturer : Johnson Pump
Manufacturer Part No : 80-47232-01
UPC : 7330717009816
