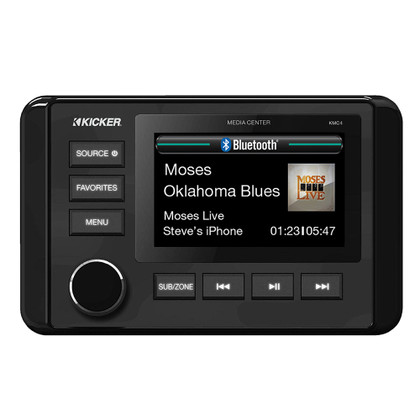

CAD DrawingCAD Drawing 2CAD Drawing 3KMC4 Weather-Resistant Gauge-Style Media Center with Bluetooth
Meet your new entertainment hub! The KMC4 features a mic and hardware for hands-free calling, and four channels and up to 160 watts of built-in power. It comes equipped with an AM/FM/Bluetooth/weather-band tuner, a charging USB connection, and four sets of RCA outputs for easy system expansion.
The KMC4 comes with a sunlight-viewable, full-color 3-inch LCD screen and a rotary encoder for easy access to your tunes. Add even more bump to your boat by connecting amplifiers to the front, rear, sub, and zone-2 RCA outputs.
Equipped with an AM/FM tuner with weather band, Bluetooth audio, RCA, and charging USB inputs, the KMC4 is ready for any music you want to play. The full color display shows you on-screen artist, album art, track, and title data. Add a wired KRC12 Remote Commander for even more control. This durable KMC4 Media Center is ready for some fun on the water! (IP66)
Features:
- Hands-Free Calling with External Mic and Hardware
- Charging USB w/Thumb-Drive Playback
- Bluetooth Connectivity
- Full-Color LCD Display
- 3” Hole Cutout
- KRC12 Remote Compatible
- AM/FM and Weather-Band Tuner
- Up to 10 Favorites for each source - AM and FM
- Front and Rear RCA Outputs, Plus Subwoofer and Zone 2
- AUX RCA Input
- Day/Night Mode
- Low Battery Alert
- Loudness control
- Customizable EQ with Five Presets
Technical Specifications:
- Power Output @ 14.4V, 4Ω stereo, <10% THD+N - 4 x 25W
- Power Output @ 14.4V, 2Ω stereo, <10% THD+N - 4 x 38W
- Bluetooth Range - 100'
- IP Rating - IP66
- Frequency Response - 20-20,000Hz
- Signal-to-Noise Ratio - 75dB
- RCA Outputs - Front, Rear, Subwoofer, Zone2
- Line-Out Level - 4V
- AUX Input Sensitivity - 500 mV
- USB: Playback, Charging, Compatible File System - AAC, W4A, MP2, MP3, WMA, WAV16, FLAC16, DC 5V, 1 Amp, FAT32
- Outer Trim Ring Dimensions - 3.5" x 5.5" x 8.81"
- Protrusion from Mounting Surface - .8"
- Required Mounting Depth for Wiring - 4.7"
- Mounting Hole Diameter - 2.99"
Manufacturer : KICKER
Manufacturer Part No : 51KMC4
UPC : 713034092124
