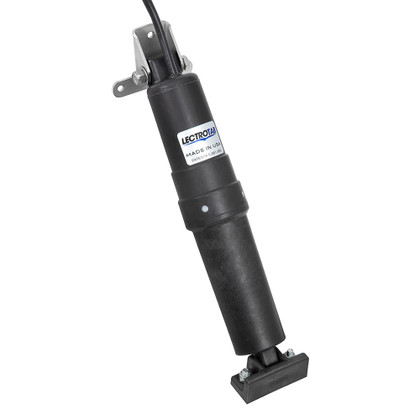

Lectrotab 12 V Heavy Duty Tab Actuator - 6' Cable

Lectrotab 12 V Heavy Duty Tab Actuator - 6' Cable

No reviews yet Write a Review
$242.25
SKU:
CW96256
Weight:
1.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

12 V Heavy Duty Tab Actuator - 6' Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy duty trim tab actuator.  The heavy duty actuator features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket.  Lectrotab heavy duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.

The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates a standard or low profile transom mounting bracket.

Features:

  • Stainless Steel upper mounting bracket
  • Reinforced actuator upper mounting boss
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • All actuators fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length  - 6' (1.8 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Upper Mounting Bracket - Stainless Steel - 12 gauge
  • Lower Mounting Bracket - Standard

*Sold as an Individual


Manufacturer : Lectrotab
Manufacturer Part No : A-BK-20
