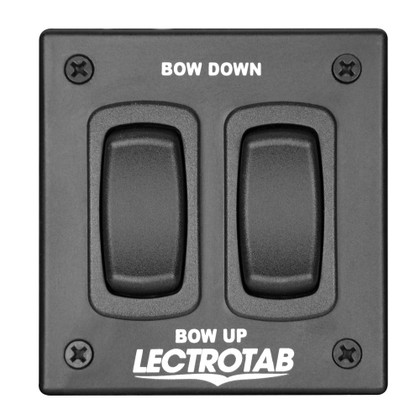

CAD DrawingCAD Drawing 2CAD Drawing 3Flat Rocker Switch
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
The gasket sealed switch is designed to prevent water entry. The control switch is self-contained and does not require an additional control box.
Features:
- Switches meet mil-std 202F for salt spray
- Designed to provide "instant stop" to prevent actuator over-run
- Gasket sealed switch to prevent water entry
- Operates up to 2 actuators per tab on 12 V and 4 actuators per tab on 24 V systems
Technical Specifications:
- Display Color - Black
- Actuators per Tab Plate - Two (2)
- Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Operating Voltage - 12 or 24 V
*Sold as an Individual
Manufacturer : Lectrotab
Manufacturer Part No : SAF-SC
