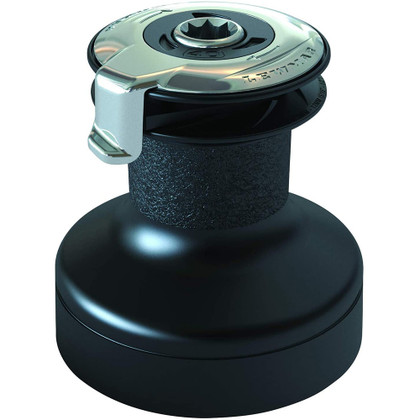

CAD DrawingCAD Drawing 2CAD Drawing 345ST EVO® Self Tailing Winch Alloy - Black
An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.
Features:
- Easy Servicing – no tools required
- User-friendly direction arrows
- Convertible to electric
Technical Specifications:
- Drum Diameter - 3.42"
- Base Diameter - 6.61"
- Height - 6.99"
- Line entry - 3.31"
- Line size: - .32" - .55"
- Gear Ratio 1st Gear - 2.4:1
- Gear Ratio 2nd Gear - 7.6:1
- Power Ratio 1st Gear - 13.9:1
- Power Ratio 2nd Gear - 44.8:1
- SWL - 2646lbs
- Weight - 15.8lbs
In the Box:
- Winch
- Instruction manual
*Sold as an Individual
Manufacturer : Lewmar
Manufacturer Part No : 49545055
