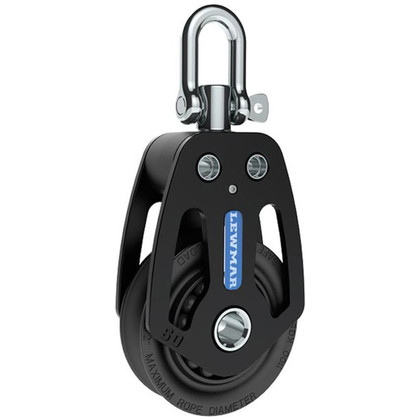

CAD DrawingCAD Drawing 2CAD Drawing 372mm HTX Block - Single
Years of design and manufacturing experience coupled with collaboration with boat builders, designers, and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high-quality materials, providing enhanced reliability.
HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.
Features:
- Strong aluminum side cheeks
- Central plain bearing for efficiency at high loads
- Side thrust Delrin ball bearings
- Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
Technical Specifications:
- Working Load Limit - 4405lb
- Weight - 15.6oz
- Maximum Line Size - .55" (14mm)
*Sold as an Individual
Manufacturer : Lewmar
Manufacturer Part No : 29197201
UPC : 743683219177
