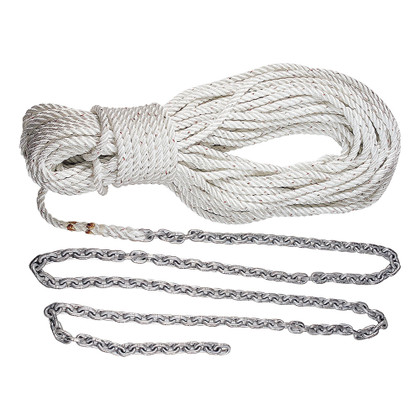

CAD DrawingCAD Drawing 2CAD Drawing 3Anchor Rode 15’ 5/16” G4 Chain with 150’ 5/8” Rope with Shackle
An anchor rode is an important part of the anchoring system, and sailors rely on it to connect the anchor to a boat. Lewmar anchor rodes are designed for exceptional performance. The strong nylon rope with a hot-dip-galvanized G4 chain makes the rope-to-chain transition smooth and promotes maximum efficiency in operation.
*A shackle is included for a secure and convenient anchor attachment point
Features:
- High-strength, welded chain rated to high-test G4 specs
- Hot-dip-galvanized chain links to minimize corrosion
- Calibrated for an even pitch
- Smooth rope-to-chain transition for seamless windlass operation
- Treated, windlass-grade, 3-strand, twisted nylon rope
- Fitted to all Lewmar windlasses and rope chain gypsies
Works With:
- Pro-series, ProFish 100-, V1, 2 & 3, along with H2 & 3 windlasses
Specifications:
- Rope: 150 ft. 5/8 in. 3-strand nylon
- Chain: 15 ft. 5/16” G4 chain
Manufacturer : Lewmar
Manufacturer Part No : HM15H150PX
UPC : 743683410970
