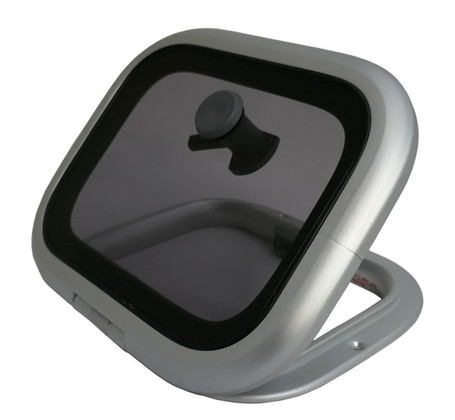

The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft. Smaller ventilation hatches are suitable for any deck location on sailboats and the larger hatches can even be used as foredeck hatches. The hatch also features Lewmar's unique sealing system allowing easy acrylic replacement
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) | |
| Self Supporting | 9/16 | Smoke Gray | 3.5 | 5/16 |
| Dimensions |
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) | |
| 9 11/16 | 11 7/8 | 1 | 2 7/8 | 6 15/16 | 9 1/8 | 1 11/16 |
Product PDF
Spec Sheet PDF
CAD Drawing
