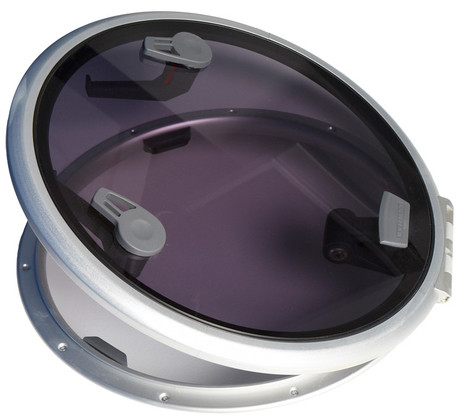

Lewmar Size 22 Low Profile Hatch Flange Base

Lewmar Size 22 Low Profile Hatch Flange Base

No reviews yet Write a Review
$666.74
SKU:
WTLEW39922030
UPC:
743683107092
Weight:
14.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

The sleekly designed Low Profile Hatch is ideal for use on a powerboat. Smaller ventilation hatches are a better fit for sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts. Lewmar hatches feature Lewmar's unique sealing system allowing easy acrylic replacement. All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).



Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in)
Self Supporting 9/16 Smoke Grey 12.8 3/8
Dimensions
Diameter (in) Height Z (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Diameter 1 (in)
23 1/8 1 23 1/4 6 13/16 20 3/8
