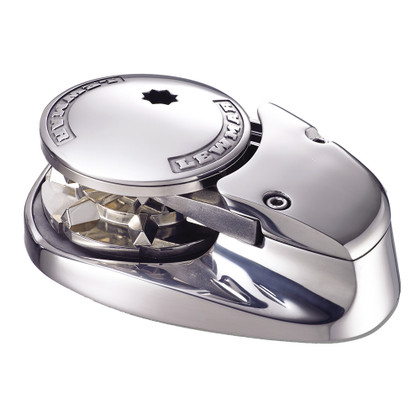

CAD DrawingCAD Drawing 2CAD Drawing 3V700 Vertical Windlass Kit - 12V
With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique - motor protection and anchor lock.
The V700 comes with a gypsy able to accept 1/4 inch chains.
Features:
- For rope, chain or combination rodes
- Built-in motor protection and fail-safe anchor lock
- Easy installation
- Fast line speed
- Manual recovery option
- Impact-resistant cover
Technical Specifications:
- Material - Stainless Steel
- Maximum Pull - 700lbs
- Maximum LIne Speed - 82'/min
- Maximum Chain Size - 1/4"
- Maximum Rope Size - 1/2"
- Power - 12 V
- Maximum Boat Length - 35'
- Mounting Position - Vertical
- Weight - 14lbs
In the Box:
- Windlass
- Switch
- Dual direction contactor/solenoid
- Circuit breaker
- Instruction manual
*Sold as an Individual
Manufacturer : Lewmar
Manufacturer Part No : 6670011108-312
UPC : 743683302930
