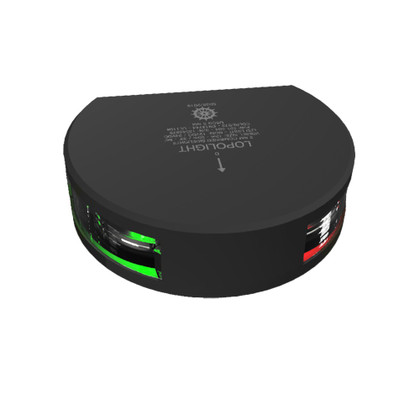

CAD DrawingCAD Drawing 2CAD Drawing 3Series 201-004 - Starboard & Port Sidelight - 2NM - Vertical Mount - Green/Red - Black Housing
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues.
Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Features:
- Single Light - Starboard and Port
Technical Specifications:
- Visibility - 2NM
- Vessel size - 39.37' to 65.62' (12 to 20M)
- Operating Voltage - 10 - 32 VDC
- Number of LED Bulbs - 1
- Light Color - Green and Red
- Mounting - Vertical
- Materials - Anodized aluminum
- Connection - 8.2' (2.5M) cable
- IP rating - IP68
- Weight - 17.64oz
Certifications:
- U.S.C.G.
- EN14744
- COLREG72
In the Box:
- Navigation light w/8.2' (2.5M) cable
- HDPE Circular Baseplate
- Mounting hardware
- Installation guide
*Sold as an Individual
