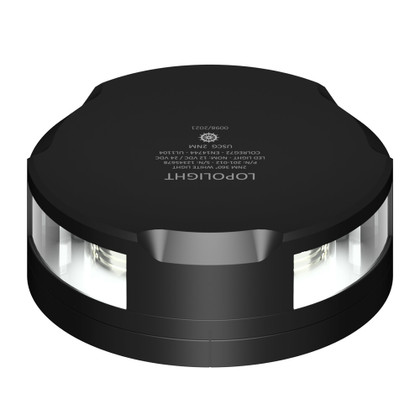

CAD DrawingCAD Drawing 2CAD Drawing 3360-Degree Anchor Light - 2NM - Black Housing with FB Base
This black 360-degree anchor light is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Black anodized aluminum housing
- 0.75m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438042797
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: White
- Visibility: 2NM
- Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 0.75m cable
- Current Consumption (mA @ 24VDC): 110
- Current Consumption (mA @ 12VDC): 167
- Dimensions Metric: Ø92.5mm x 36mm
- Dimensions Imperial: Ø3.6" x 1.4"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 2
- Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters
Manufacturer : Lopolight
Manufacturer Part No : 201-012-FB-B
