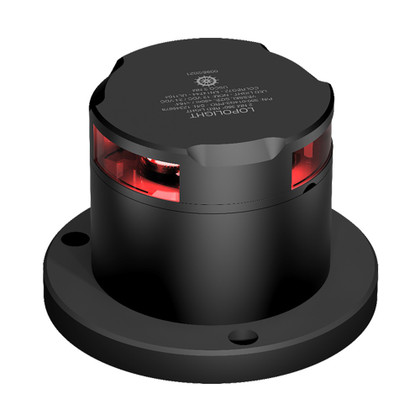

CAD DrawingCAD Drawing 2CAD Drawing 33nm 360° Red Ice-Class Black Anodized Light
Features:
- Built-in De-icing function
- Horizontally mounted on 400-037 alu base (IP68)
- Cable direction side
- Includes HDPE base plate
- Quality cable glands - 3 sizes included:
- 9-17mm (3/8"-11/16") cable diameter
- 7-13mm (1/4"-1/2") cable diameter
- 4.5-10mm (5/32"-3/8") cable diameter
Specifications:
- Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support. This Navigation Light conforms to USCG Commandant instructions M16672.2.
- Compliant with relevant sections of: MIL-STD-461G, - MIL-STD-901E, - MIL-STD-167-1A, - MIL-STD-1399/300-1
- Intensity: >15cd
- Dimensions imperial: Ø3.6" x 3.5"
- Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Visibility: 3nm
- Operating temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438012448
- IP rating: IP68
- Power draw (W): 2,9
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 210
- Current consumption (mA @ 24VDC): 120
- Vessel size: Over 50M
- Min. feed wire gauge: 1.5mm2 AWG18
- Weight (Kg): 1.14 Kg
- Weight (Oz): 40.21 Oz
