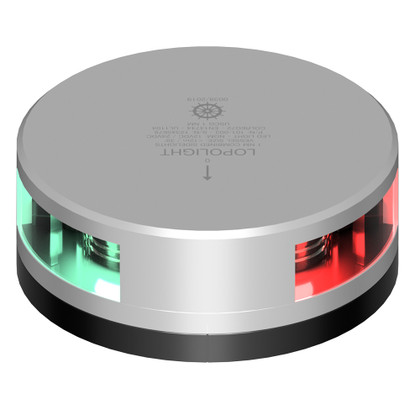

CAD DrawingCAD Drawing 2CAD Drawing 3Combined Sidelight - 1NM - Silver Housing with FB Base
This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized housing
- 2.5m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438042605
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red, green
- Visibility: 1NM
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 2.5m cable
- Current Consumption (mA @ 24VDC): 48
- Current Consumption (mA @ 12VDC): 87
- Dimensions Metric: Ø92,5mm x 58mm
- Dimensions Imperial: Ø3.6" x 1.4"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 1,4
- Vessel Size: Under 12 meters
Manufacturer : Lopolight
Manufacturer Part No : 101-003-FB
