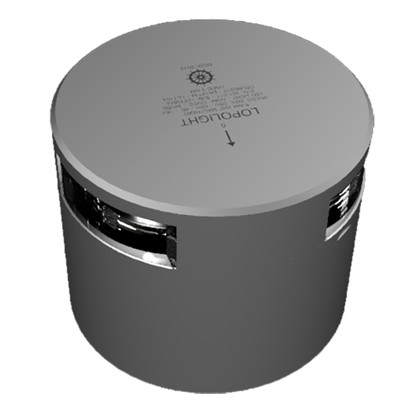

CAD DrawingCAD Drawing 2CAD Drawing 3Series 301-011KL - Masthead Light - 5NM - Horizontal Mount - White - Silver Housing
Lopolight started out back in 2004, offering many solutions and neat combinations for all-size boats and yachts. The tradition continues.
Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact, and precise solution with good value for money.
Features:
- Single light - Masthead
- Extended CSCD (400-034) base
Technical Specifications:
- Visibility - 5NM
- Vessel size - 65.6' to 164' (20 - 50M)
- Operating Voltage - 10 - 32 VDC
- Number of LED Bulbs - 1
- Light Color - White
- Mounting - Horizontal
- Materials - Anodized aluminum
- Connection - Plug connector
- IP rating - IP68
- Weight - 15.17oz (.43kg)
Certifications:
- U.S.C.G.
- EN14744
- COLREG72
In the Box:
- Navigation light
- Connector
- Mounting hardware
- Installation guide
*Sold as an Individual
Manufacturer : Lopolight
Manufacturer Part No : 301-011KL
UPC : 879343011765
