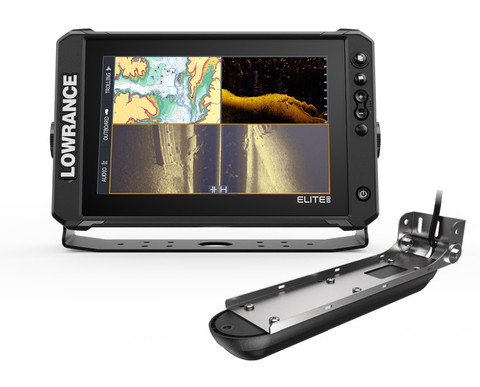

CAD DrawingCAD Drawing 2CAD Drawing 3Lowrance Elite™ FS 10 with Active Imaging 3-in-1 Transducer (US/CAN)
Model: 000-16430-001- ActiveTarget™ 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
- FishReveal™
- Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics® and more
The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Discover Onboard charts — to help you make the most of your time on the water. *Active Imaging HD requires S3100 Module
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ with FishReveal™ to preloaded C-MAP® Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Fish smarter when you know exactly what fish are doing — in real time — with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Discover Onboard inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada. *Active Imaging HD requires S3100 Module
Specifications| DISPLAY | |
| Resolution | 1280X800 |
| Viewing angle in degrees | 80° top/bottom, 80° left/right |
| Brightness | > 1200 nits |
| Touch screen | Multi-touch |
| PHYSICAL | |
| Weight | 3.66lb (1.66kg) |
| Compass Safe Distance | 2.1 ft (65 cm) |
| ENVIRONMENTAL | |
| Operating temperatature range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof Rating | IPX6 and IPX7 |
| ELECTRICAL | |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Recommended Fuse Rating | 3 Amps |
| Power Consumption Maximum | 34.5 W (2.5 A at 13.8 V DC) |
| INTERFACE/CONNECTIVITY | |
| NMEA 2000 | 1 port (Micro-C connector) |
| Data Card Reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What's in the Box:
- Elite FS 10 Display
- ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable
- Elite™ FS 10 Suncover
- HDS-10 PRO / Elite FS-10 Bracket
- Lowrance Power Cable
- Fuse and Fuse Holder
- Corner Clip ELITE-7, 9, 10, and 12 FS
