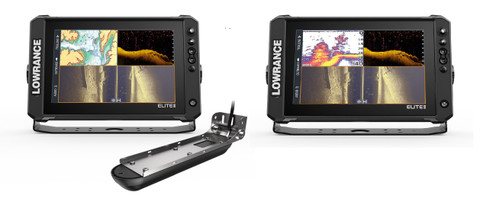

CAD DrawingCAD Drawing 2CAD Drawing 3Lowrance Dual Elite™ FS 10 ""Boat in a box"" with 2 x Elite FS 10"" displays Active Imaging 3-in-1 Transducer, Point-1 GPS, 25 ft Ethernet cable, and NMEA 2000 Micro-C network components
Model: 000-16477-001The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ with FishReveal™ to preloaded C-MAP® Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Fish smarter when you know exactly what fish are doing — in real time — with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP Discover Onboard inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada. *Active Imaging HD requires S3100 Module
What's in the Box:
- Elite™ FS 10 Display x 2
- ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable with bracket
- POINT-1 GPS Antenna
- Ethernet Cable 7.6m (25ft)
- N2K Start Kit
- N2K T-Joiner
