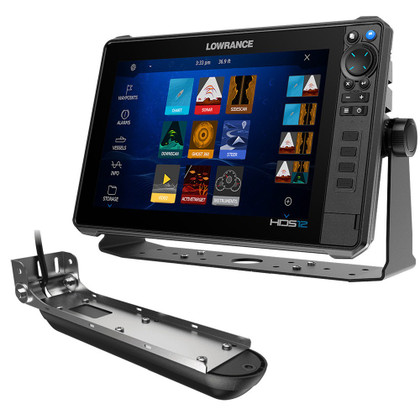

CAD DrawingCAD Drawing 2CAD Drawing 3Lowrance HDS12 Pro 12in MFD C-Map US & Canada AI 3n1 Transducer
Model: 000-16521-001- Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- SolarMAX™ HD Touchscreen is viewable at extreme angles and through polarized lenses
- High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- High-resolution ActiveTarget 2 Live Sonar ready
- FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
- Real-time mapping is available with C-MAP Genesis Live.
- Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000, wireless and Bluetooth, connectivity — plus smartphone notifications
See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get a full fishing system that networks with expanded boat control from bow to stern.
Active Imaging 3-in-1 Transom Mount Transducer: See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal™. The high-level clarity, target separation, and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches, and drop-offs — all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Specifications| Display | |
| Backlight Color | Pure white LED |
| Display Resolution | 1280 x 800 |
| Viewing Angles | 80 degrees top/bottom, 80 degrees left/right |
| Connectivity | |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Ethernet Ports | 2 x 100 Mbit, 6 max MFDs on a network |
| Connectivity WiFi | Internal 802.11b/g/n and compatible with WiFi-1 Module |
| NMEA 2000 Connectivity | 1x Micro-C |
| SD Card Storage | 2 micro SD cards up to 32GB |
| Electrical | |
| Power Consumption Max | 3.6A @ 13VDC with full backlight, sonar on |
| Power Consumption Minimum | 2.3A @ 13VDC with full backlight, sonar on |
| Power Consumption Typical | 2.3A @ 13VDC with full backlight, sonar on |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12V DC (10.8-17VDC) |
| GPS | |
| GPS Receiver Channels | 16 |
| Update rate | 10 Hz |
| MFD (Multi-Function Display) | |
| Cartography included | C-MAP Discover OnBoard (AMER models) |
| Internal Storage | 8.0 GB Internal |
| Waypoints, Routes, Tracks | 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail |
What's in the Box:
- HDS PRO fishfinder/chartplotter (12-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
- Active Imaging 3 in 1 Transom Mount Transducer
