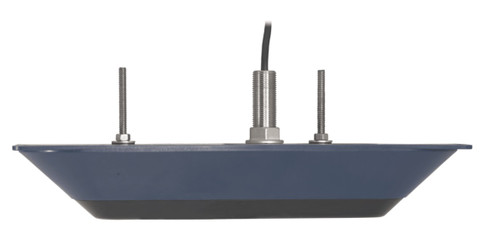

CAD DrawingCAD Drawing 2CAD Drawing 3TotalScanTM Through-Hull Transducer with Medium/High Chirp and 455/800kHz Down and SideScan.
Model: 000-14257-001- All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan ImagingTM
- Supports 83/200kHz Broadband sonar frequencies
- Supports Medium and High CHIRP frequencies
- Supports 455/800kHz StructureScan(R) frequencies
- Supports Water Temperature
TotalScan thru hull transducer with Medium and High CHIRP. Single transducer. Use the fairing block if the deadrise angle of the hull exceeds 10 degrees. The fairing can accommodate a dead rise angle of up to 22 degrees.
The TotalScanTM Transducer allows anglers to access Medium CHIRP, High CHIRP, DownScanTM Imaging and StructureScanTM using only a single transducer.
What's in the Box:
- TotalScanTM Through-Hull Transducer
- TotalScanTM Fairing Block Only
