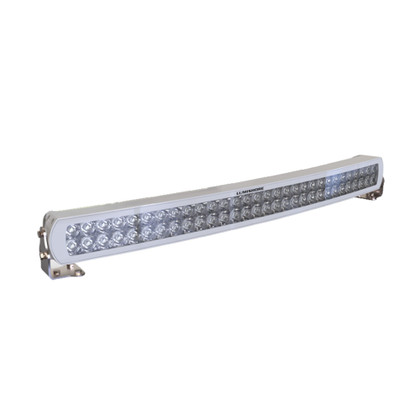

CAD DrawingCAD Drawing 2CAD Drawing 330" Curved Light Bar - White
Lumishore's collection of Light Bars is designed to offer a high-intensity light source, covering a wide area.
The 30'' (80cm) Light Bar delivers an incredible output (23,760 fixture lumens) of crisp, white light to illuminate your boat deck and beyond. Available in 20”, 30”, 40” and 50” models, allowing for versatile placement onboard.
Designed to withstand the harshest marine environments, completely water-tight (IP68 compliant) and housed in marine-grade powder-coated aluminium. These sleek, low-profile Light Bars enhance your boat's fit-out, even when not in use.
Specifications:
- Available Colors: White (5000 K)
- Lumens: 53,460
- Fixture Lumens (White): 23,760
- Number & Type Of LED: 60 x 10W White LED
- LED Power - HICOB Array: Yes
- Typical LED Life: 50,000+ Hours
- Warranty: 3 Years
- User Control Options: On/Off Switch (Third-party supplied) ECLIPSE Command Center EOS-LUX Command Center
- Electrical Installation: Simple 2 Wire Connection (3 Wires when used with ECLIPSE Command Center, or EOS-LUX Command Center)
- Housing Type: Powder Coated Aluminium Body with Makrolon Lens
Manufacturer : Lumishore
Manufacturer Part No : 010-04463-00
