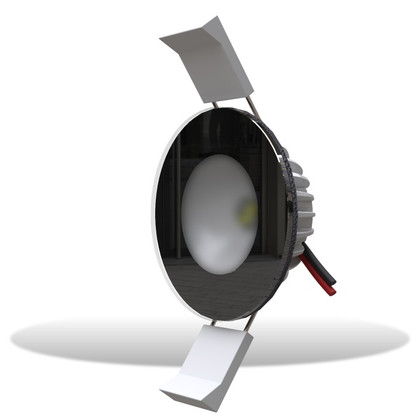

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore Eclipse DL55 Blue & White Down Light 12/24vDC Black Housing
Model: 010-04476-00Lumishore’s ECLIPSE Downlights provide excellent illumination to enhance a variety of indoor or outdoor overhead spaces onboard.
Constructed of a durable aluminium body with a glass front, completely water sealed and IP67 rated.
Simple to install (2 wire hookup) with a shallow depth profile of only 21mm (0.83"").
Available in dual color blue and white, single color blue or white, and White + RGB. Choose from a black or white finish to complement your boats aesthetic.
Specifications| Colors | Blue & White (5000 K) |
| LED Type | 2 x 3W Blue LEDs / 2 x 3W White LEDs |
| Customer Control Options | On/Off Switch or ECLIPSE Command Center |
| Electrical Installation | Simple 2 Wire Installation |
| Supply Voltage Range | 12V DC Only (10 - 15V DC) |
| Max Current Draw (12/24V DC) | 0.4A |
| Ingress Protection | IP67 |
| Front Diamater (Bezel) | 64.0mm (2.519"") |
| Profile | 3.5mm (0.137") |
| Hole Diameter for fitting | 50.8mm (2.0"") |
| Mechanical Installation | Stainless Steel Spring Clips |
| Warranty | 3 Years |
