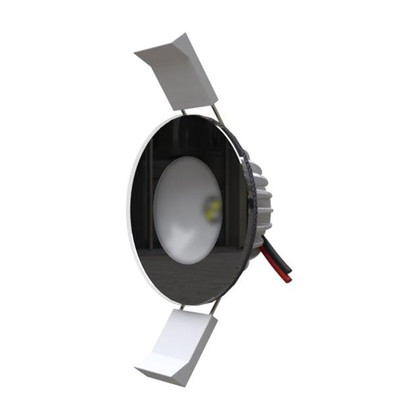

CAD DrawingCAD Drawing 2CAD Drawing 3ECLIPSE DL55 White & RGB Downlight - Black Finish
Lumishore’s ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.
They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83”).
Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boat's aesthetic.
Features:
- Dual Color
- 3 Year Warranty
- ECLIPSE Collection
Specifications:
- LED Type: 2 x 3W White & RGB LEDs
- Customer Control Options: On/Off Switch or ECLIPSE Command Center
- Electrical Installation: Simple 2-Wire Installation
- Supply Voltage Range: 12V DC Only (10 - 15V DC)
- Max Current Draw (12/24V DC): 0.4A
- Ingress Protection: IP67
- Front Diamater (Bezel): 64.0mm (2.519")
- Profile: 3.5mm (0.137”)
- Hole Diameter for fitting: 50.8mm (2.0")
- Mechanical Installation: Stainless Steel Spring Clips
Manufacturer : Lumishore
Manufacturer Part No : 010-04541-00
UPC : 847772004306
