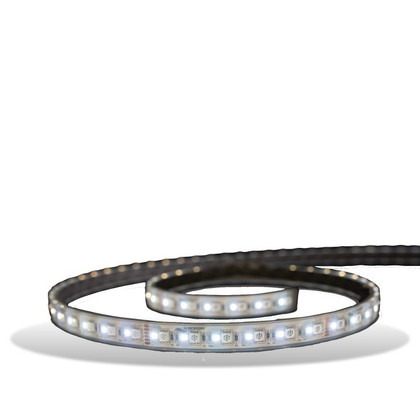

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore Eclipse SL100 5m Blue & White Strip Light 12/24vDC
Model: 010-04485-00Ideal for adding subtle decorative effects and indirect lighting to any craft, ECLIPSE Strip Lights can be seamlessly integrated into gunwales, under furniture, behind ceiling panels, and more while remaining mostly hidden.
Available in dual color blue and white, single color blue or white and RGB, and in three versatile sizes—1m, 2.5m, and 5m—these lights offer incredible flexibility.
Lumishore’s high-quality, high-output ECLIPSE Strip Lights are fully encapsulated, potted, and water-resistant, ensuring durability and performance in any setting.
Specifications| Colors | Blue and White (5000k) |
| LED Type/Density | 60 Blue LEDS per meter, 60 White LEDS per meter |
| Customer Control Options | on/off switch or ECLIPSE Command Center |
| Mechanical Installation | Cut to Length and Seal the Cut End Before Installation. Plug and Play |
| Electrical Installation | Simple 2 Wire Installation |
| Supply Voltage Range | 12V DC Only (10 - 15V DC) |
| Max Current Draw Per Meter (12/24V DC) | 0.5A (6W/m) |
| Ingress Protection | IP68 |
| Cross Section (Strip) | 10.8mm x 4.0mm (0.425" x 0.157") |
| Length | 5m |
| Construction | Fully Encapsulated and Potted |
| Warranty | 3 Years |
