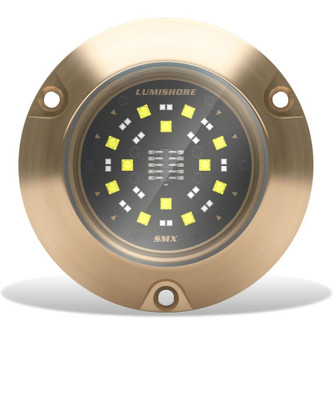

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore ECLIPSE SMX54 Surface Mount Blue/White LED
Model: 60-0534 / 010-04505-002-lights-in-1 (blue and white) in a single high-powered bronze surface mount fixture without sacrificing brightness; both colors run at full power!
Lumishore's SMX54 delivers 7,500 fixture lumens in a wide 90° beam of light.
Control the SMX54 with a standard on/off switch, SUPRA i-Connect Hub & Switch or ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull sides of nearly any type of boat.
Specifications| AVAILABLE LED COLORS | DUAL COLOR (BLUE & WHITE) |
| LUMENS | 16,875 |
| VERIFIED FIXTURE LUMENS (WHITE) | 7,500 |
| NUMBER AND TYPE OF LED | White — 12 5W / Blue —24 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 90° |
| DRIVER | MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 5.9A / 2.8A |
| HOUSING TYPE | MARINE GRADE BRONZE / GLASS LENS |
| USER CONTROL OPTIONS | ON/OFF SWITCH, I-CONNECT HUB & SWITCH OR ECLIPSE COMMAND CENTER |
| LIGHTS SYNCHRONIZED | YES |
| COLOR FADE CYCLE | YES |
| FADE w/BRIGHTNESS ADJUST | YES (NOT WITH ON/OFF SWITCH) |
| FIXED STROBES | YES |
| STROBE w/SPEED ADJUST | YES (NOT WITH ON/OFF SWITCH) |
| SYSTEM MEMORY | YES (NOT WITH ON/OFF SWITCH) |
| Warranty | 3 YEARS |
