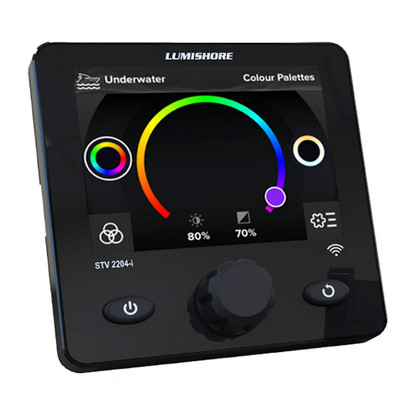

CAD DrawingCAD Drawing 2CAD Drawing 3EOS-LUX-SUPRA Display
The EOS-LUX-SUPRA Display is an optional secondary display, which can be used in addition to, or instead of, an MFD.
This dedicated glass-bridge style, touch display, and rotary dial is easy to manipulate when cruising, or with wet/salty hands.
Compatible with your LUX above-water lights, EOS, and SUPRA underwater lights (excl. SMX23).
Lumishore's EOS-LUX-SUPRA Display features built-in Wi-Fi control.
Features:
- Easy Control of your lights
- Interior or Exterior Mounting
- Full Color 3.5” LCD
- Touch Screen & Rotary Dial Control
- Add more Displays for control from multiple locations
- Specially Designed for Ease of Installation
- Plug and Play Connections
Specifications:
- Number of nodes per Command Center (Max): 85+ Nodes (1000+ Lights)
- Screen Type: Full Color 3.5” LCD Touchscreen
- Supply Voltage Range: 10.5 - 31 V DC
- Max Current Draw 12/24V: 0.3 A / 0.15 A
- Surge Protection: Yes (3000V)
- Low Voltage Protection: Low / High Voltage Cut Out
- In Rush Current Protection: Yes
- Power Line Noise Suppression: Yes
- Bonding: Not Required
- Reverse Polarity Protection: Yes
- Load Dump Protection: Yes
- ISO 8846 (Ignition Protection): Yes
Manufacturer : Lumishore
Manufacturer Part No : 010-04362-00
UPC : 847772002326
