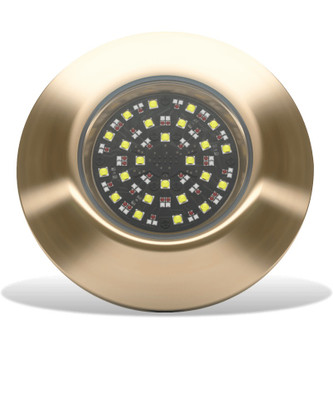

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore EOS THX804 Thru-Hull Mount and Driver RGBW LED
Model: EOS THX804 / 010-04520-00The fully controllable color change THX804 underwater light delivers the greatest range of colors, 12,000 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
Lumishore's THX models feature a standard 1"" fitting and an external driver. Flush-fit in design, with extremely low profiles.
Suitable for transom, side and bottom mounting.
Specifications| AVAILABLE LED COLORS | FULL EOS COLOR CHANGE (RGBW) |
| LUMENS | 27,000 |
| VERIFIED FIXTURE LUMENS (WHITE) | 12,000 |
| NUMBER AND TYPE OF LED | White—24 10W / Green—24 3W / Blue—24 3W / Red—32 3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 110° |
| DRIVER | Multi-Channel External Driver |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 8.8A/4.4A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | From your MFD and/or optional Lumishore Display |
| LIGHTS SYNCHRONIZED | YES |
| COLOR CYCLE w/SPEED ADJUST | YES |
| COLOR SWEEP w/SPEED ADJUST | YES |
| CUSTOMIZABLE FAVORITES | YES |
| FIXED & RANDOM STROBES | YES |
| PROGRAMMABLE SCENES | YES |
| WI-FI CONTROL (APP) | YES |
| SOUND-TO-LIGHT | YES |
| BRIGHTNESS ADJUST | YES |
| AUTO LIGHT DISCOVERY & SETUP | YES |
What's in the Box:
- One (1) EOS THX804 Light
- One (1) External Driver
- One (1) 1M DMX cable (60-0403)
