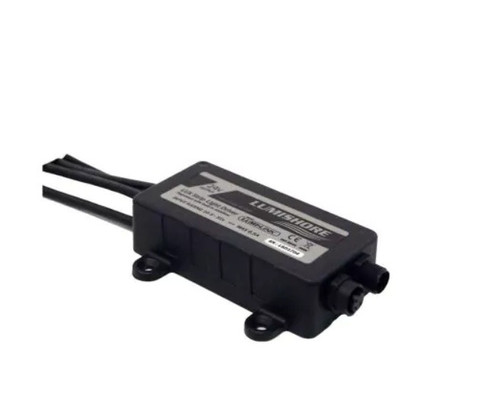

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore LUX SL Driver for Strip Light
Model: 010-04438-00- Full Spectrum RGB and White Color Temperature Tunable (2700K to 6500K)
- Full MFD Connectivity for LUX Lighting
- Specially Designed for Ease of Installation
- Plug and Play Connections
| Driver | Multi-Channel Internal Driver |
| Supply Voltage Range | 10.5 - 31 V DC |
| Max Current Draw (12/24V DC) | 5.6A / 2.8A |
| Surge Protection | Yes |
| ATRB (Automatic Thermal Roll Back) | Yes |
| Low Voltage Protection | Yes |
| Low Voltage Protection | Yes - Intelligent Multi-Channel Power Management |
| "Soft Start" Electronics Protection | Yes |
| Reverse Polarity Protection | Yes |
| In Rush Current Protection | Yes |
| Power Line Noise Suppression | Yes |
| Max Cable Length to start of LED strip | 5m (16.8’) |
| Number of LED strips per Driver: Multiple LED Strips | Up to 10m (32.8’) total strip length |
| ISO 8846 (Ignition Protection) | Yes |
