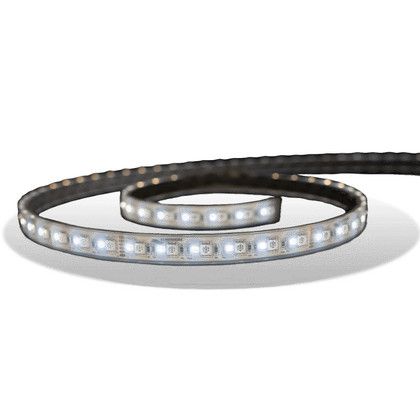

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore LUX SL180 CRGBW Strip Light Cut-Seal 1000mm
Model: SL180Cut your strip lights to the length you require! Lumishore's LUX Cut & Seal Strip Lights are an excellent solution to your mood lighting needs, while providing incredible flexibility.
Full spectrum - cold white, red, green, blue, warm white and white color temperature tuneable (from 2700k to 6500k) available in a single LED strip.
They come with a connector at both ends. By cutting the strip to length it allows you to create 2 strips out of any standard strip light length* (cut points are spaced at 100mm intervals). A sealing kit is provided, including glue and end caps to seal the cut end of the LED strip, making it completely watertight.
Controlled by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.
Dimmable as standard and powered by a Strip Light Driver.
Specifications| Available colors | Full spectrum CRGBW and white color temperature tuneable in the same strip light |
| Number of LEDS: | 180 per meter |
| Ingress Protection | IP68 |
| Mechanical installation | Adhesive backing and screw clips |
| Control options | Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
| Driver | LUX Strip Light Driver |
| Number of LED strips per driver | Multiple — up to 10m total |
| UV resistant | Yes |
| Salt spray tested | Yes |
| Warranty | 3 Years |
What's in the Box:
- One (1) Lux Cut & Seal Strip Light SL180 -1000mm
- Two (2) Connectors - one (1) at both ends
- Sealing kit - one (1) tube of silicon adhesive and four (4) end caps
