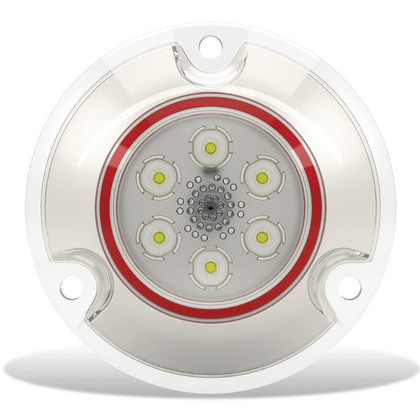

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore ORA SMX11 Surface Mount Underwater Blue LED Light Polymer Housing 12vDC
Model: SMX11- Choose from 3 LED colors: white, blue or green.
- Easy to install and simple to control, by a standard on/off switch.
- Suitable for transom mounting.
- 1 Year Warranty
Specifically designed for smaller boats, the SMX11 offers unmatched light output and optics for a light of its compact size. Flooding the water with 1,100 fixture lumens of light in a focused 60° beam.
Specifications| LED COLOR | Blue |
| LUMENS | 2475 |
| VERIFIED FIXTURE LUMENS | 1,100 |
| NUMBER AND TYPE OF LED | 6X3W HIGH POWER LEDS |
| LED POWER - HICOB ARRAY | Yes |
| TYPICAL LED LIFE | 60° |
| DRIVER | BUILT-IN INTERNAL DRIVER |
| SUPPLY VOLTAGE | 10.5 - 14.5 V DC |
| MAX CURRENT DRAW | 1A |
| HOUSING TYPE | MARINE GRADE POLYMER |
| USER CONTROL OPTIONS | ON/OFF SWITCH |
