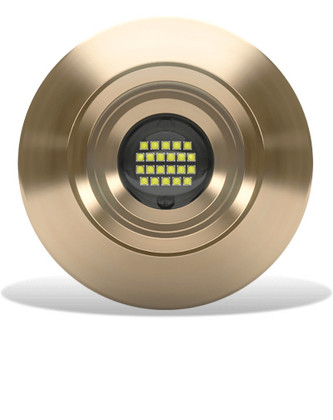

CAD DrawingCAD Drawing 2CAD Drawing 3Lumishore ORA TIX204 Interchangeable Flush Fit Mount Blue LED
Model: ORA TIX204 / 010-04523-00The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull.
Available in single color Blue, White or Green with a focused 60° beam angle.
TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.
Easily controlled by a standard on/off switch.
Suitable for transom, side and bottom mounting.
Specifications| LED COLOR | BLUE |
| LUMENS | 11,925 |
| VERIFIED FIXTURE LUMENS (WHITE) | 5,300 |
| NUMBER AND TYPE OF LED | White - 11 x 10W High Power LEDs, Blue & Green — 22 x 3W High Power LED |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 60° |
| DRIVER | MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 4.0A/1.9A |
| HOUSING TYPE | MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS | ON/OFF SWITCH |
What's in the Box:
- One (1) ORA TIX204 Light with Built-in Driver
